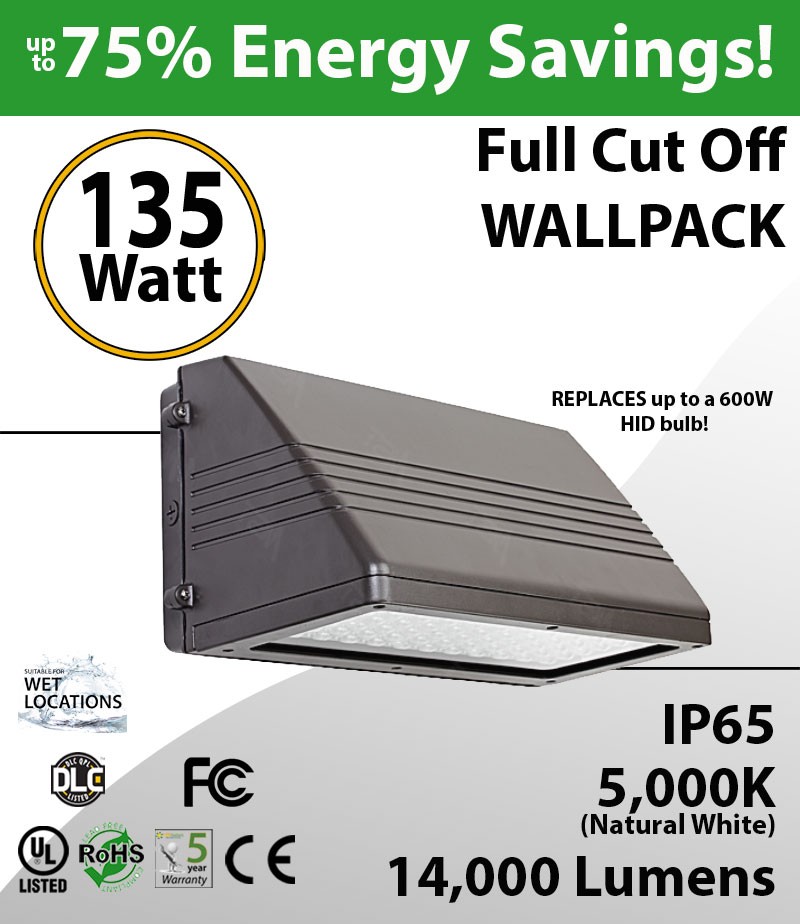

Powerful and Efficient 135W LED Full Cut off Wall Pack
Introduction
The 135W LED Full Cut off Wall Pack is a high-performance lighting solution designed to illuminate outdoor spaces with exceptional brightness and efficiency. With its impressive lumen output, energy-saving features, and durable construction, this Wall Pack is ideal for a wide range of applications, providing reliable illumination and long-term cost savings.
High-Intensity Illumination
Equipped with a powerful 135-watt LED light source, this Wall Pack delivers an impressive luminous flux of 14,000 lumens, ensuring bright and uniform lighting across outdoor areas. With its full cut-off design and eye-shaped lens type, the Wall Pack minimizes light pollution and glare, directing the light precisely where it's needed without causing unnecessary discomfort to passersby or neighboring properties.
Energy Efficiency and Cost Savings
Compared to traditional HID bulbs, which consume significantly more power, the 135W LED Wall Pack offers unparalleled energy efficiency, saving more than 75% in electricity costs. By reducing energy consumption and eliminating the need for frequent bulb replacements, this Wall Pack provides substantial long-term savings for property owners, with an estimated annual ROI of about 40%.
Durable and Weatherproof Design
Crafted from high-quality materials and featuring an IP65-rated housing, the LED Full Cut off Wall Pack is built to withstand harsh outdoor conditions, including rain, snow, and extreme temperatures. Its robust construction and anodized aluminum heat radiator ensure reliable performance and durability, even in challenging environments. The Wall Pack's bronze finish adds a touch of aesthetic appeal while enhancing corrosion resistance.
Wide Range of Applications
With its versatile design and superior lighting performance, the 135W LED Full Cut off Wall Pack is suitable for various outdoor applications, including building facades, perimeter lighting, walkways, and parking lots. Whether installed in commercial, industrial, or residential settings, this Wall Pack provides exceptional illumination and security, enhancing visibility and safety for occupants and visitors alike.
Easy Installation and Maintenance
Designed for hassle-free installation, the LED Wall Pack comes with a wired connector and hardwired base type, allowing for quick and convenient mounting on walls or other flat surfaces. With its long lifespan of over 70,000 hours and minimal maintenance requirements, property owners can enjoy years of reliable lighting performance without the hassle of frequent bulb changes or repairs.
We invite you to browse our selection and do not hesitate to chat with us or call us to 844-533-7230 for any question regarding our LED products.
| P3ZQNH4U |
MEDIUM WALL PACK INSTALLATION GUIDE
(WTM-TZP-70600-4Y/5Y)
PLEASE READ ALL INSTRUCTIONS BEFORE ATTEMPTING INSTALLATION
1. To avoid electric shock, disconnect power at source prior to installation.
1. Junction box Mounting
1. Loosen screws and remove the front lens set carefully from the back plate.
2. Drill appropriate knockouts (B) for wiring, the fixture supports standard 3 1/4' and 4" Junction box.
3. Attach the back plate on the wall use the supplied gaskets for a weather tight seal
4. Finish wiring (Black for Line, White for Neutral and Green/Yellow wire for Ground).
5. Replace the lens on the hinges, make connections and close the lens set then tighten the screws.
2. Conduit Mounting
1. Loosen screws and remove the front lens set carefully from the back plate.(See step 1 above)
2. Remove 1/2 'plug from where you intend to feed conduit
3. Drilling out the holes (C) to secure it on the wall with choosing proper screws.
4. Finish wiring (Black for line, White for neutral and Green/Yellow for ground). (See step 4 above)
5. Replace the lens on the hinges, make connections and close the lens set and tighten the screws to fasten the lens set to the back plate.
Save the environment, your children and the planet
500 North Dixie Hwy, #8, Hollywood, FL 33020 – (844).533.7230
Contact@ledradiant.com – www.ledradiant.com
5 YEAR WARRANTY POLICY
For Commercial LED Lamps and fixtures
• This warranty policy is valid only for products sold in The United States of America.
• Products have been purchased directly from a LEDRadiant (sales) organization. • Proof of purchase is available for inspection by LEDRadiant. • Products have been properly installed and operated in accordance with the manufacturer’s instructions. • More than 10% of the LED chips are not properly working. • A LEDRadiant representative will have access to the defective Products. • If the Products or other parts become suspect, the representative shall have the right to invite other manufacturers’ representatives to evaluate the lighting systems. • Shipping and Labor costs for installation of the Products are not covered under this warranty. This warranty is valid for order number: By LEDRadiant
Save the environment, your children and the planet
500 North Dixie Hwy, #8, Hollywood, FL 33020 – (844).533.7230
Contact@ledradiant.com – www.ledradiant.com |
Customer Reviews
- excellent Review by Sam
-
Rate Good LED Full Cut-Off Wall Pack with excellent brightness. They provide solid, efficient lighting for our outdoor spaces.(Posted on 7/20/2024) - perfect choice Review by Dan
-
Rate The 135W LED Full Cut off Wall Pack is a reliable outdoor lighting solution. With 14000 lumens output and a 5000K color temperature, it provides excellent illumination(Posted on 4/27/2024) - Heavy duty product! Review by Perry
-
Rate Heavy duty, great quality and bright light in natural white color. Complies with dark skies ordinance here in Broward county.(Posted on 2/18/2020) - Dark skies compliant! Review by Yoni
-
Rate We filled the outside public parking building with these full cut off wall packs, so now we complied with the Dark skies policy in place.(Posted on 11/25/2019) - Good Choice! Review by Sully F.
-
Rate We replaced all our old 400 metal halide wall packs from our Industrial Park buildings with these Full Cutt Off 135 Watt Wall Packs., we are very impressed with the results and all the area is brighter and safe. Good choice(Posted on 11/4/2019)
- Product Description
-
Powerful and Efficient 135W LED Full Cut off Wall Pack
Introduction
The 135W LED Full Cut off Wall Pack is a high-performance lighting solution designed to illuminate outdoor spaces with exceptional brightness and efficiency. With its impressive lumen output, energy-saving features, and durable construction, this Wall Pack is ideal for a wide range of applications, providing reliable illumination and long-term cost savings.
High-Intensity Illumination
Equipped with a powerful 135-watt LED light source, this Wall Pack delivers an impressive luminous flux of 14,000 lumens, ensuring bright and uniform lighting across outdoor areas. With its full cut-off design and eye-shaped lens type, the Wall Pack minimizes light pollution and glare, directing the light precisely where it's needed without causing unnecessary discomfort to passersby or neighboring properties.
Energy Efficiency and Cost Savings
Compared to traditional HID bulbs, which consume significantly more power, the 135W LED Wall Pack offers unparalleled energy efficiency, saving more than 75% in electricity costs. By reducing energy consumption and eliminating the need for frequent bulb replacements, this Wall Pack provides substantial long-term savings for property owners, with an estimated annual ROI of about 40%.
Durable and Weatherproof Design
Crafted from high-quality materials and featuring an IP65-rated housing, the LED Full Cut off Wall Pack is built to withstand harsh outdoor conditions, including rain, snow, and extreme temperatures. Its robust construction and anodized aluminum heat radiator ensure reliable performance and durability, even in challenging environments. The Wall Pack's bronze finish adds a touch of aesthetic appeal while enhancing corrosion resistance.
Wide Range of Applications
With its versatile design and superior lighting performance, the 135W LED Full Cut off Wall Pack is suitable for various outdoor applications, including building facades, perimeter lighting, walkways, and parking lots. Whether installed in commercial, industrial, or residential settings, this Wall Pack provides exceptional illumination and security, enhancing visibility and safety for occupants and visitors alike.
Easy Installation and Maintenance
Designed for hassle-free installation, the LED Wall Pack comes with a wired connector and hardwired base type, allowing for quick and convenient mounting on walls or other flat surfaces. With its long lifespan of over 70,000 hours and minimal maintenance requirements, property owners can enjoy years of reliable lighting performance without the hassle of frequent bulb changes or repairs.
We invite you to browse our selection and do not hesitate to chat with us or call us to 844-533-7230 for any question regarding our LED products.
- Additional Information
-
P3ZQNH4U
MEDIUM WALL PACK INSTALLATION GUIDE(WTM-TZP-70600-4Y/5Y)PLEASE READ ALL INSTRUCTIONS BEFORE ATTEMPTING INSTALLATION
1. To avoid electric shock, disconnect power at source prior to installation.
2. The installation should be performed by qualified electricians or lighting technicians.
3. Before conducing any installation, maintenance, or removal, disable all power to the luminaries and wait until the fixture cool down.
4. Do not touch the fixture while it is in service.
5. If there is any problem with the fixture, DO turn off power, and DO NOT attempt repair unless you are a qualified technician or the customer service member.
1. Junction box Mounting
1. Loosen screws and remove the front lens set carefully from the back plate.
2. Drill appropriate knockouts (B) for wiring, the fixture supports standard 3 1/4' and 4" Junction box.
3. Attach the back plate on the wall use the supplied gaskets for a weather tight seal
4. Finish wiring (Black for Line, White for Neutral and Green/Yellow wire for Ground).
5. Replace the lens on the hinges, make connections and close the lens set then tighten the screws.
2. Conduit Mounting
1. Loosen screws and remove the front lens set carefully from the back plate.(See step 1 above)
2. Remove 1/2 'plug from where you intend to feed conduit
3. Drilling out the holes (C) to secure it on the wall with choosing proper screws.
4. Finish wiring (Black for line, White for neutral and Green/Yellow for ground). (See step 4 above)
5. Replace the lens on the hinges, make connections and close the lens set and tighten the screws to fasten the lens set to the back plate.
Save the environment, your children and the planet500 North Dixie Hwy, #8, Hollywood, FL 33020 – (844).533.7230
Contact@ledradiant.com – www.ledradiant.com
5 YEAR WARRANTY POLICYFor Commercial LED Lamps and fixtures
This document sets forth the warranty policy of the LEDRadiant organization (‘LEDRadiant’) from which you (‘Purchaser’) purchase your commercial LED Lamps .
This policy is applicable only to LEDRadiant (‘Products’) described in the Warranty Certificate extended to the Purchaser along with the correlated invoice or the Certificate in the website page for the product being questioned.
This warranty policy is subject to the provisions as set forth herein and is subject to the terms and conditions as attached to this document (‘Warranty Terms and Conditions’) .
This warranty policy only applies if referred to in a sales agreement between LEDRadiant and the Purchaser and it will replace the standard warranty clause provided in the LEDRadiant general terms and conditions of sale.
Warranty period
5 Year. The warranty period starts on the date the products are delivered.
By default, purchaser receives above mentioned ‘standard warranty’.
On request, an ‘extended warranty’ or ‘customized project warranty’ can be agreed upon after evaluation of the specific application conditions. Extended warranty cost will be calculated and applied to the order.
Purchaser shall not rely upon any other information or documentation.
Within the warranty period, LEDRadiant will replace any defective bulb or fixture with equal or updated working model in the same conditions or better.
Summary Warranty Terms and Conditions (non-exhaustive)
• This warranty policy is valid only for products sold in The United States of America.
• Products have been purchased directly from a LEDRadiant (sales) organization.
• Proof of purchase is available for inspection by LEDRadiant.
• Products have been properly installed and operated in accordance with the manufacturer’s instructions.
• More than 10% of the LED chips are not properly working.
• A LEDRadiant representative will have access to the defective Products.
• If the Products or other parts become suspect, the representative shall have the right to invite other manufacturers’ representatives to evaluate the lighting systems.
• Shipping and Labor costs for installation of the Products are not covered under this warranty.
This warranty is valid for order number:
By LEDRadiant
Save the environment, your children and the planet500 North Dixie Hwy, #8, Hollywood, FL 33020 – (844).533.7230
Contact@ledradiant.com – www.ledradiant.com - Product Tags
