SPECIFICATIONS:
SKU: HCC-RAF-3J39J-50



































Electrical:






                                Watts:300



                                Operating Voltage:120-277 VAC



                                Operating Temperature: -40° F to 122° F



                                Operating Humidity:20% to 90%RH



                                Power Factor (PF):>90%



                                Power Supply Efficiency:>90%









Photometric:






                                LED Luminous Flux (lm):39000



                                Luminous Efficiency:130



                                CRI (ra):>72



                                Color Temperature (Kelvin):5000 K



                                Lens type:Clear



                                Expected Life: 70,000 hrs.



                                L70:50,000 hrs.



                                Beam Angle:180º









Mechanical:






                                IP Rating:IP66



                                Connector:Wired



                                Base Type: Hardwired



                                Heat Radiator:Anodized Aluminum



                                Color:Gray (light)



                                Product Size:10.51" x 14.84"




                                Package Size:12'' x 16'' x 16''



                                Unit Gross Weight: 10.0000 Lb









Certifications:






                                Safety Compliance:



                                EMI/RFI compliance:FCC



                                Energy Efficiency/Performance:



                                Environmental:RhOS































APPLICATIONS:

And more








                615 N 21st Avenue, Hollywood, FL 33020, United States of America - Tel: +1 (844)533-7230

contact@ledradiant.com - www.ledradiant.com

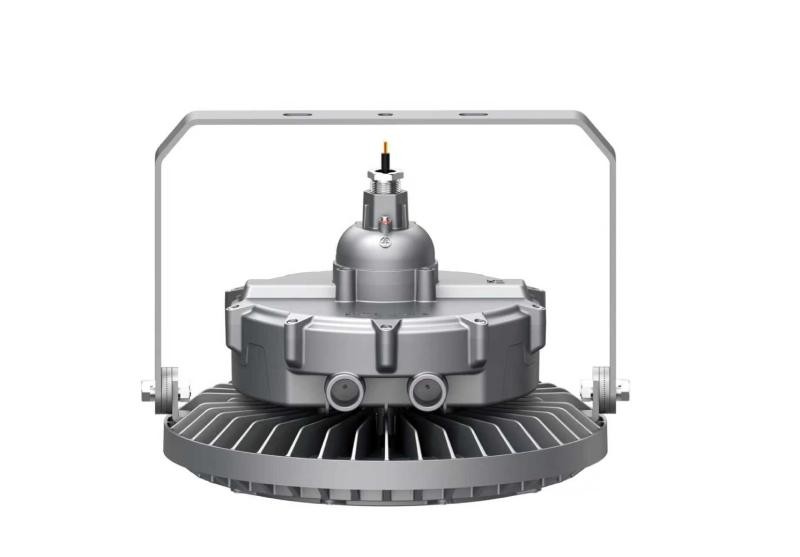

LED Explosion Proof Light Round Class 1 Div 2 300W 39000Lm 5000K

The LED Explosion Proof Light Round Class 1 Div 2 300W 39000Lm 5000K is a powerful and highly durable lighting solution designed specifically for hazardous environments where safety, reliability, and performance are critical. Engineered to operate safely in locations where flammable gases, vapors, or combustible dust may be present, this fixture provides strong illumination while meeting strict safety standards for hazardous locations.

With an impressive output of 39,000 lumens, this explosion proof LED light delivers bright and uniform illumination for large industrial spaces. The high-performance 300-watt LED system ensures excellent light output while maintaining energy efficiency compared to traditional hazardous location lighting technologies. This powerful illumination helps improve visibility and operational safety in demanding work environments.

Designed with a 5000K cool white color temperature, this fixture produces a crisp, daylight-like light that enhances clarity and detail recognition. The 5000K lighting tone is particularly effective in industrial settings where high visibility is essential for safe operation and inspection tasks.

This LED explosion proof fixture is rated for Class 1 Division 2 hazardous locations, meaning it is suitable for areas where flammable gases or vapors are not normally present during standard operations but may exist under abnormal conditions. The fixture’s construction is specifically designed to prevent internal sparks or heat from igniting surrounding hazardous materials.

The round design of the fixture allows for wide and even light distribution, making it effective for illuminating large work areas. Its high lumen output and optical design help minimize shadows and dark spots, creating a safer and more productive working environment.

Constructed with heavy-duty materials, the fixture is built to withstand harsh industrial conditions. The robust housing protects internal components from dust, moisture, vibration, and impact, ensuring reliable performance even in challenging environments. This durability makes the fixture suitable for installations where equipment must operate continuously under demanding conditions.

The integrated LED technology provides a long operational lifespan, significantly reducing the need for frequent maintenance or replacements. This is especially beneficial in hazardous locations where accessing lighting fixtures may require special safety procedures or equipment.

Because of its rugged design and high safety standards, the LED Explosion Proof Light Round Class 1 Div 2 300W is ideal for a wide range of industrial applications. These include oil and gas facilities, chemical plants, refineries, power plants, manufacturing facilities, fuel storage areas, and other hazardous industrial locations where explosion-proof lighting is required.

In addition to safety and performance, the fixture also offers energy efficiency. LED technology allows it to deliver high lumen output while consuming less energy compared to traditional hazardous location lighting systems, helping reduce operational costs over time.

The LED Explosion Proof Light Round Class 1 Div 2 300W 39000Lm 5000K combines powerful illumination, durable construction, and certified hazardous location protection. Designed to meet the demands of industrial safety environments, this fixture provides dependable lighting performance while helping maintain safe working conditions in areas where reliable explosion-proof lighting is essential.
